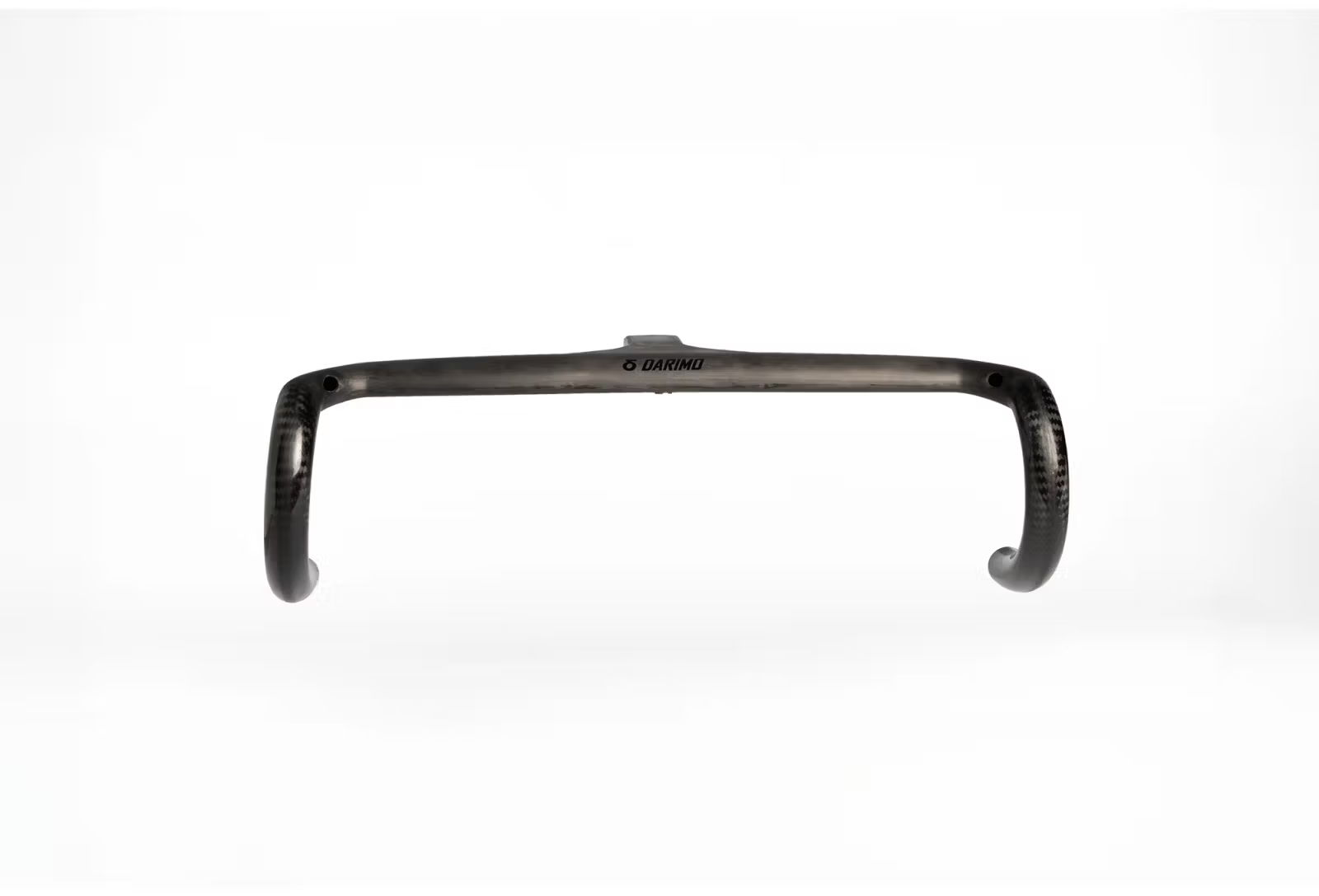

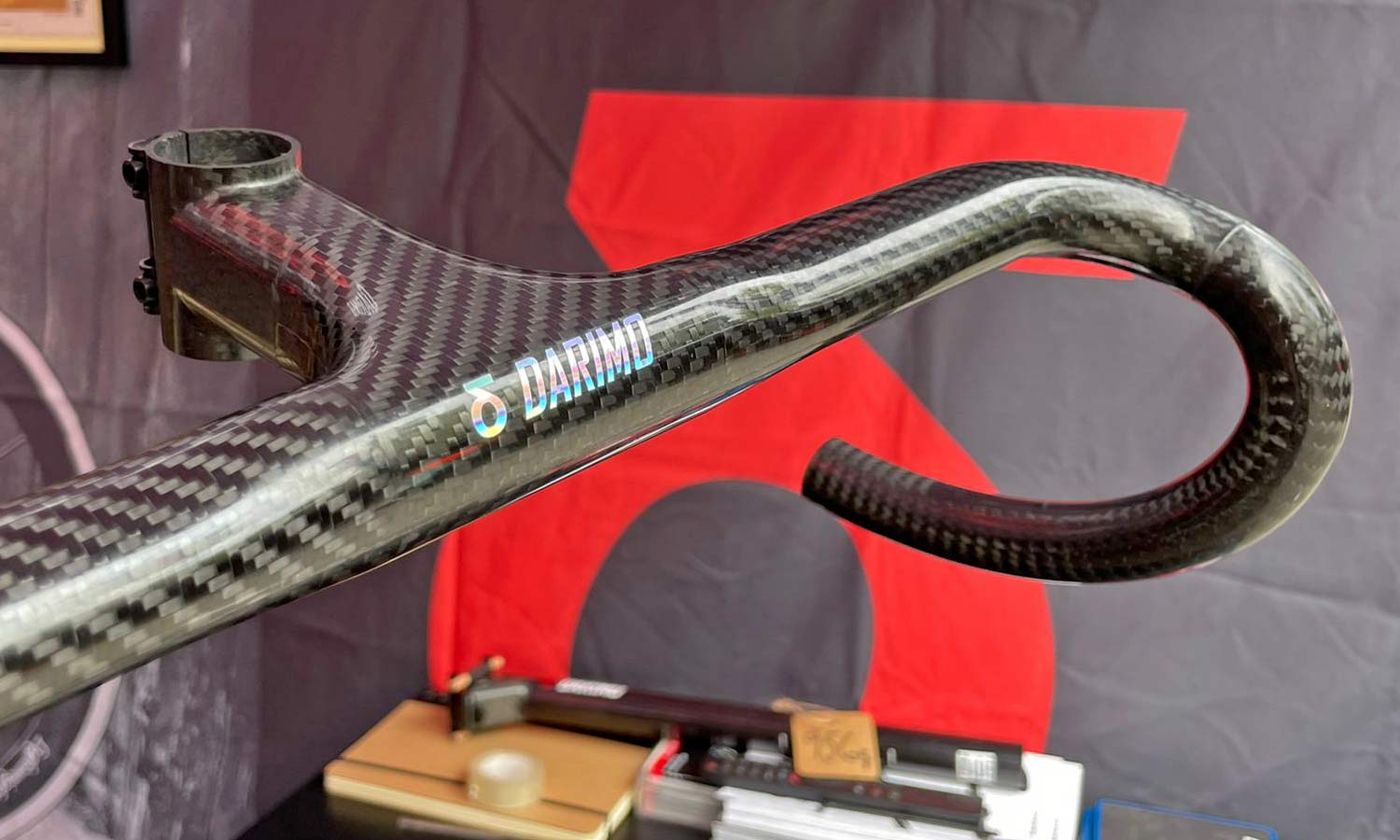

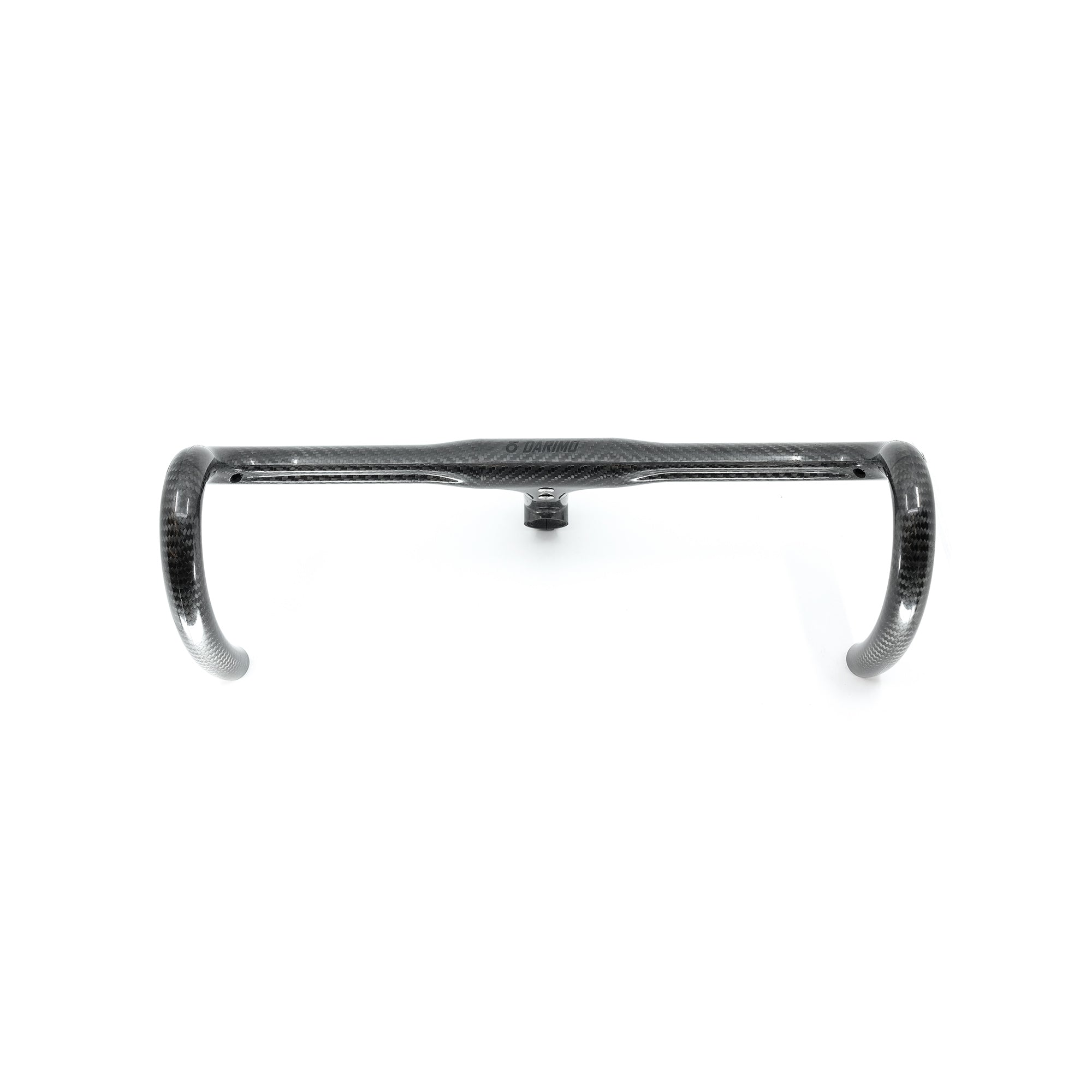

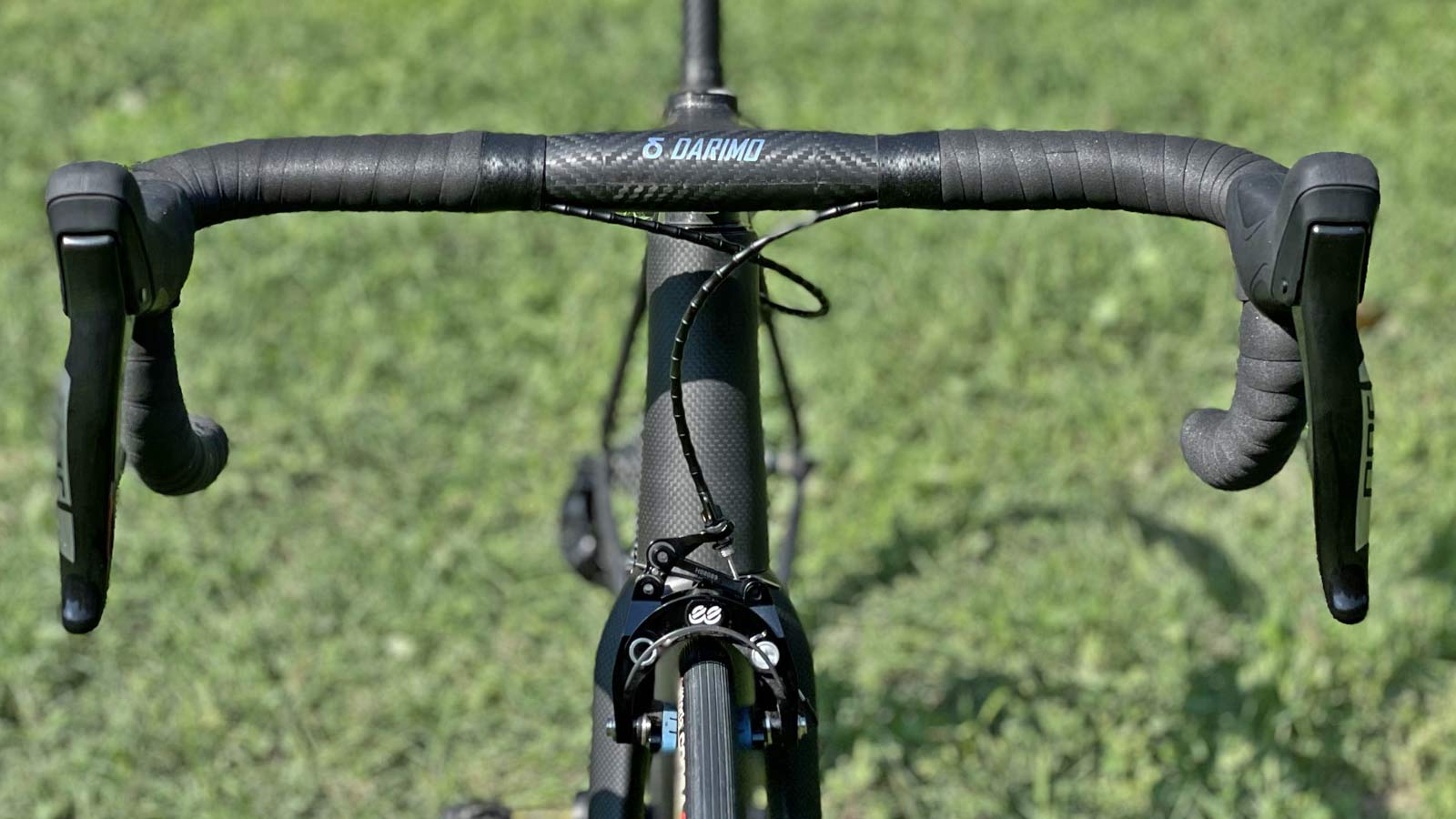

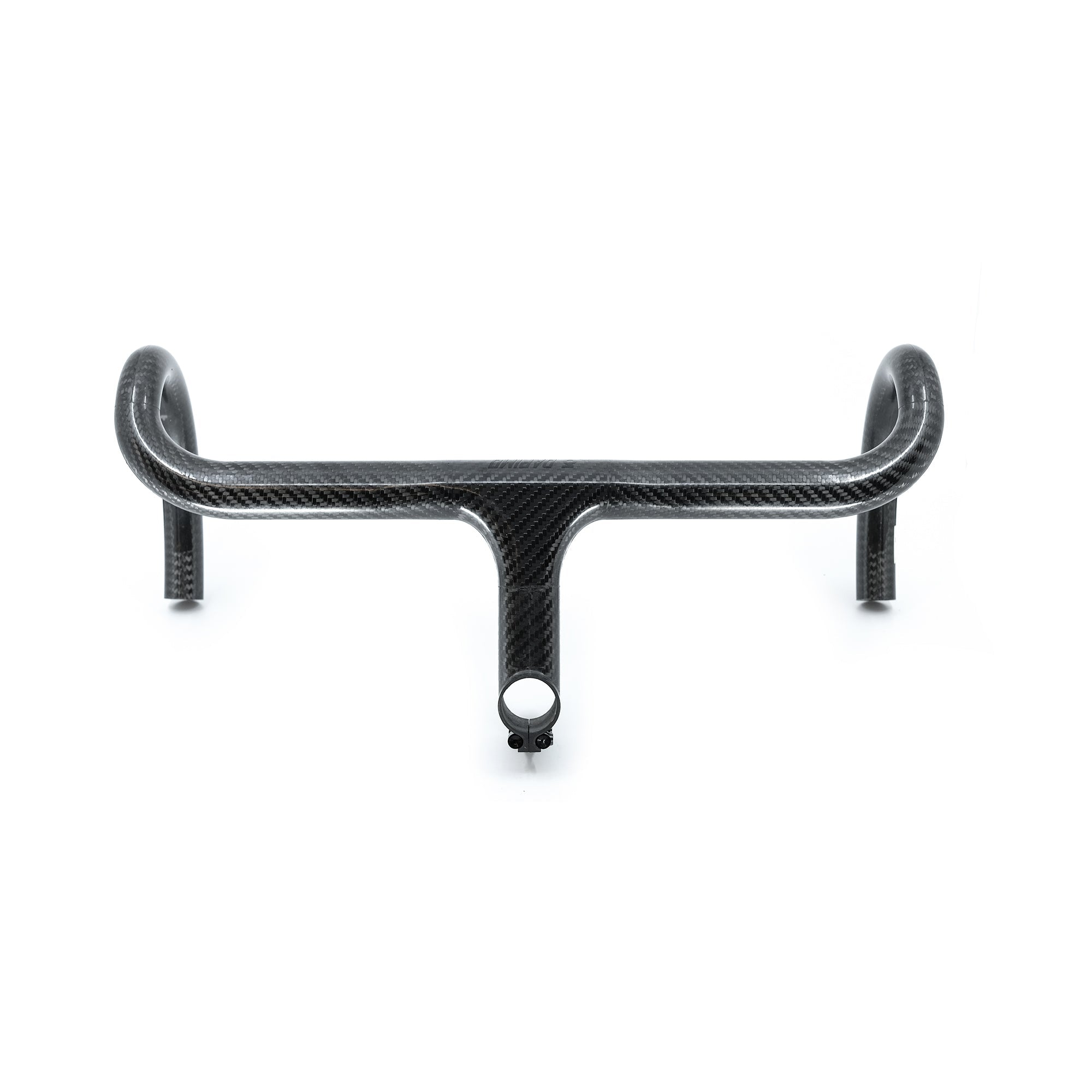

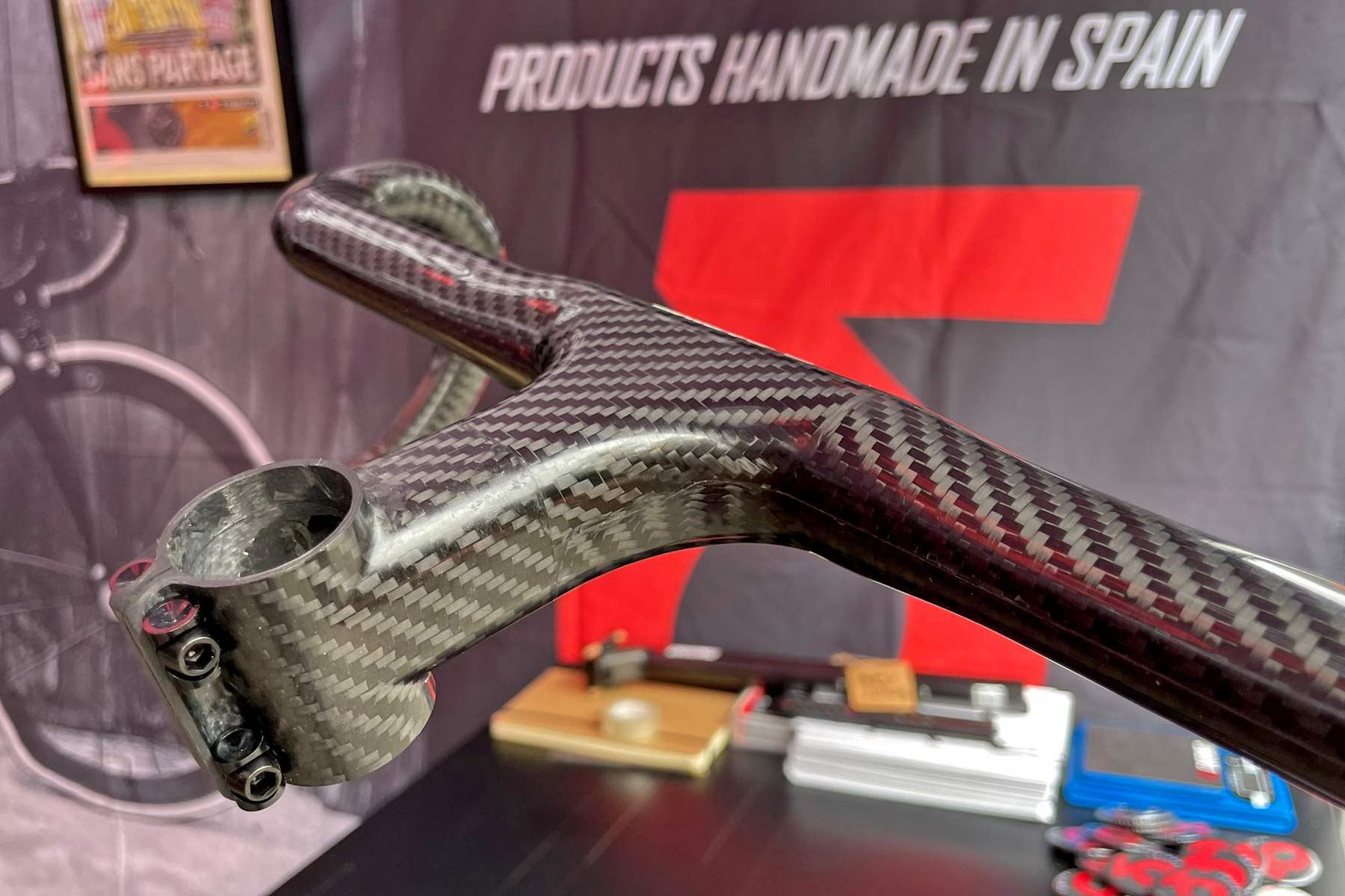

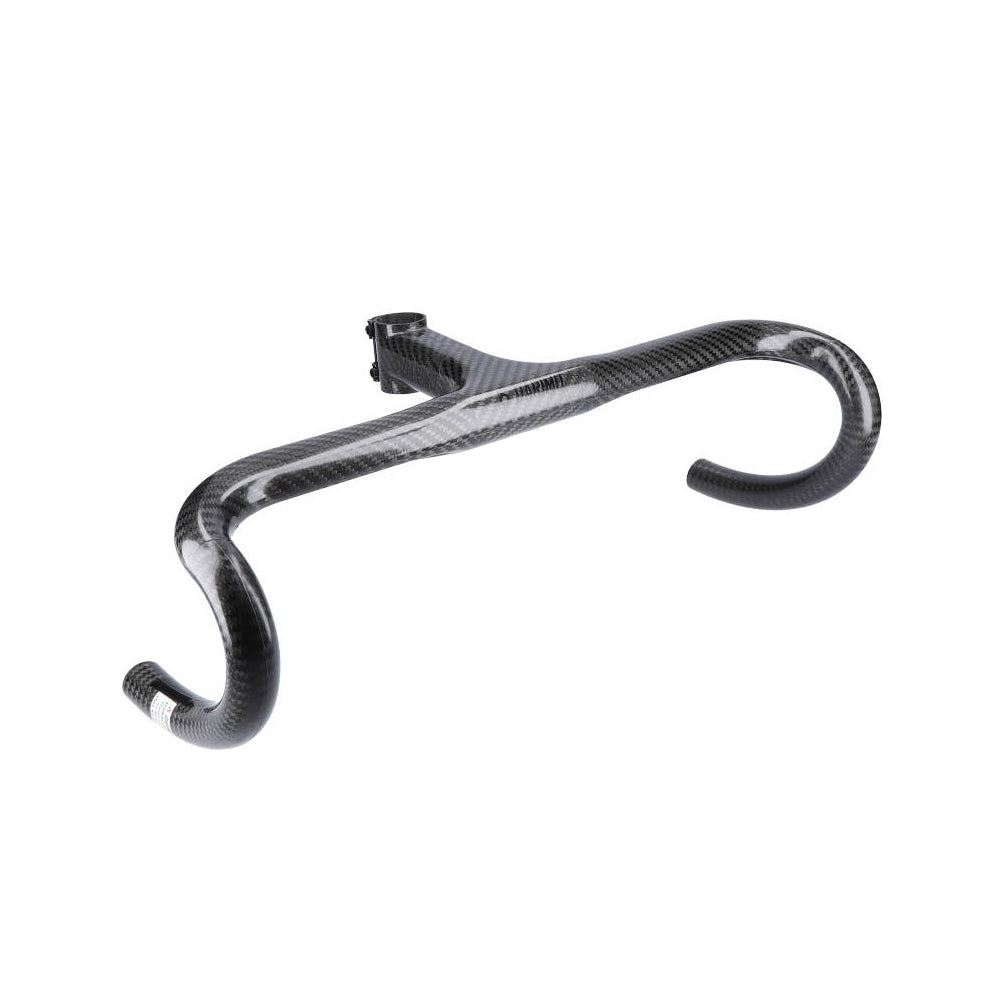

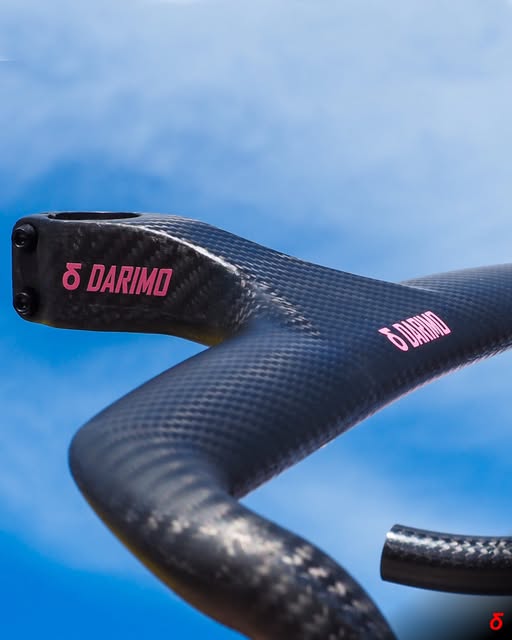

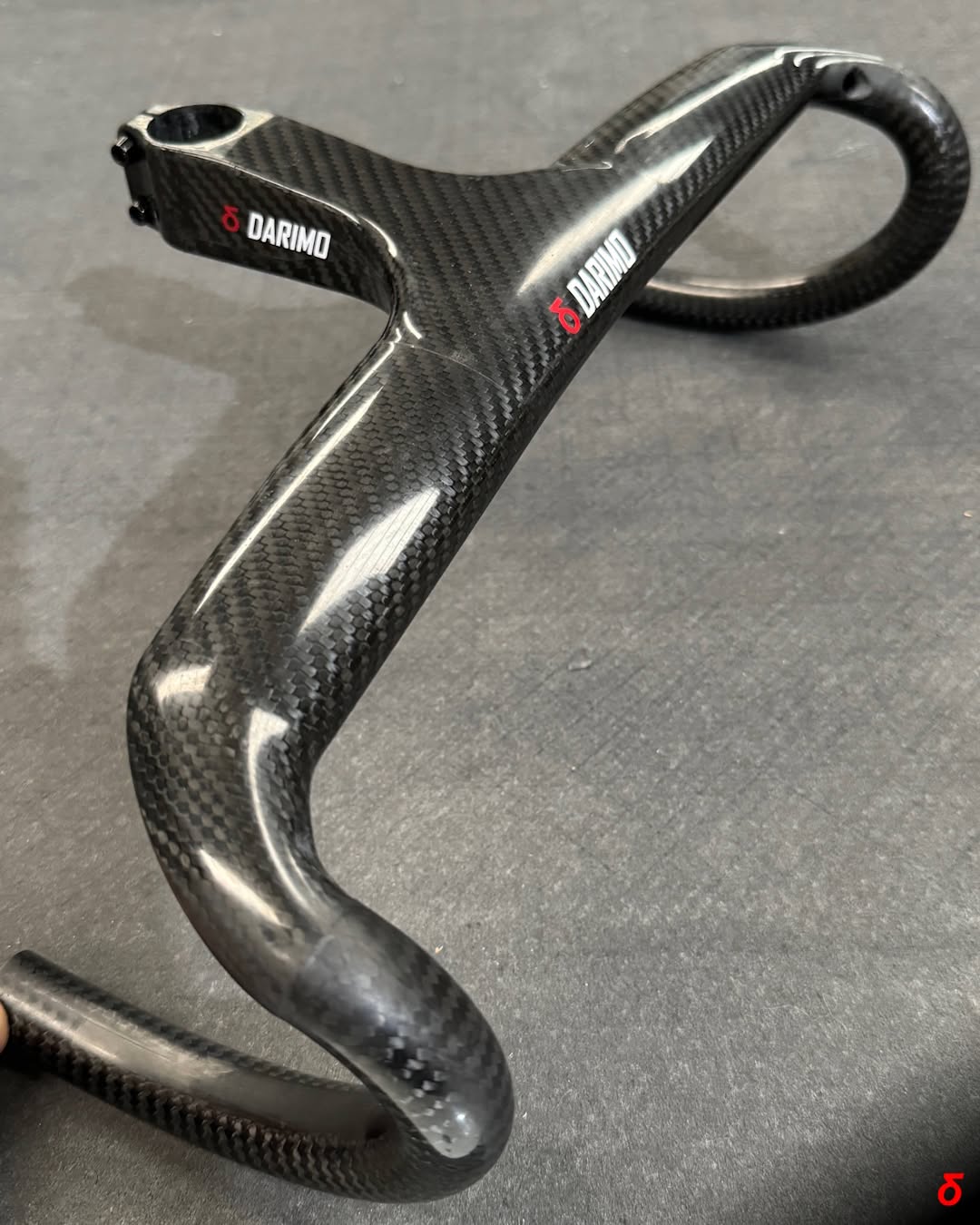

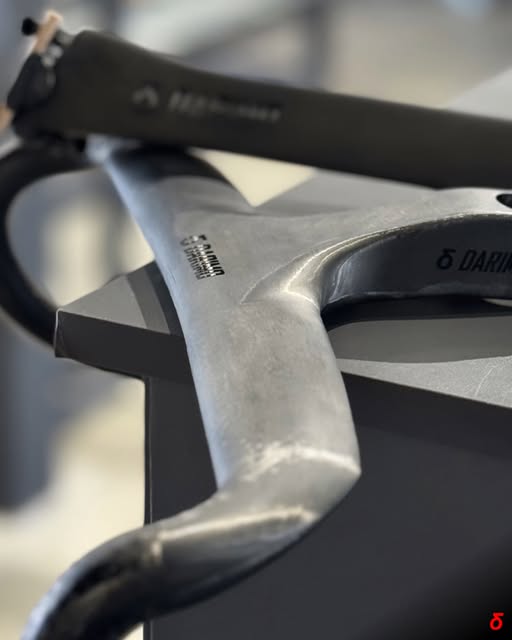

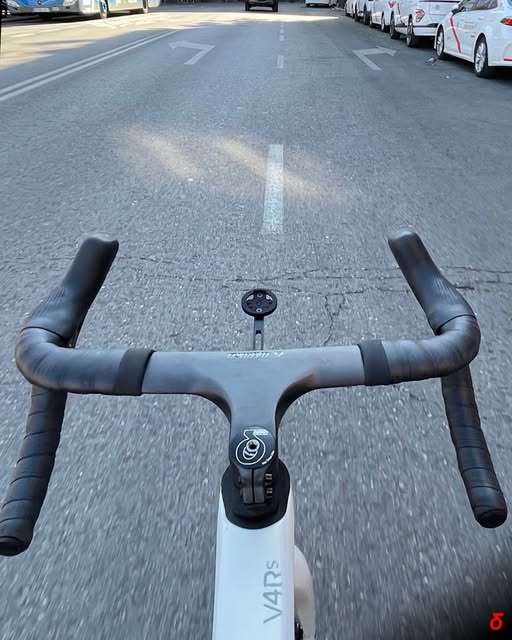

🚴♂️ Darimo Nexum Drag Integrated Handlebar/Stem Combo
Crazy fact: The Darimo Nexum Drag weighs just 226g (380x100mm) — lighter than most handlebars alone, yet strong enough to pass ISO 4210-2 testing. It’s the world’s lightest aero-integrated cockpit, handcrafted in Spain for riders obsessed with every gram.
- 💨 Aero-optimised, drag-reducing shape
- ⚖️ Featherweight 226g carbon build
- 🧠 Fully custom fit and finish
- 🔧 Internal cable routing ready
- 🇪🇸 Handmade in Spain
The Darimo Nexum Drag is the evolution of the legendary Nexum cockpit — now faster, lighter, and more aerodynamic than ever. Built for serious cyclists chasing performance, precision, and perfect integration.
📦 Specifications
- Widths: 360 / 380 / 400 / 420 / 440 mm (C–C)
- Stem lengths: 70 – 130 mm (in 10 mm steps)
- Stem angle: -6° (−12° & −17° available soon)
- Reach: 77 mm | Drop: 128 mm
- Clamp height: 34 mm | Stack height: 43 mm
- Steerer clamp: 1-1/8″ (28.6 mm)
- System weight limit: 110 kg (rider + gear)
- Material: UD or 3K carbon fibre

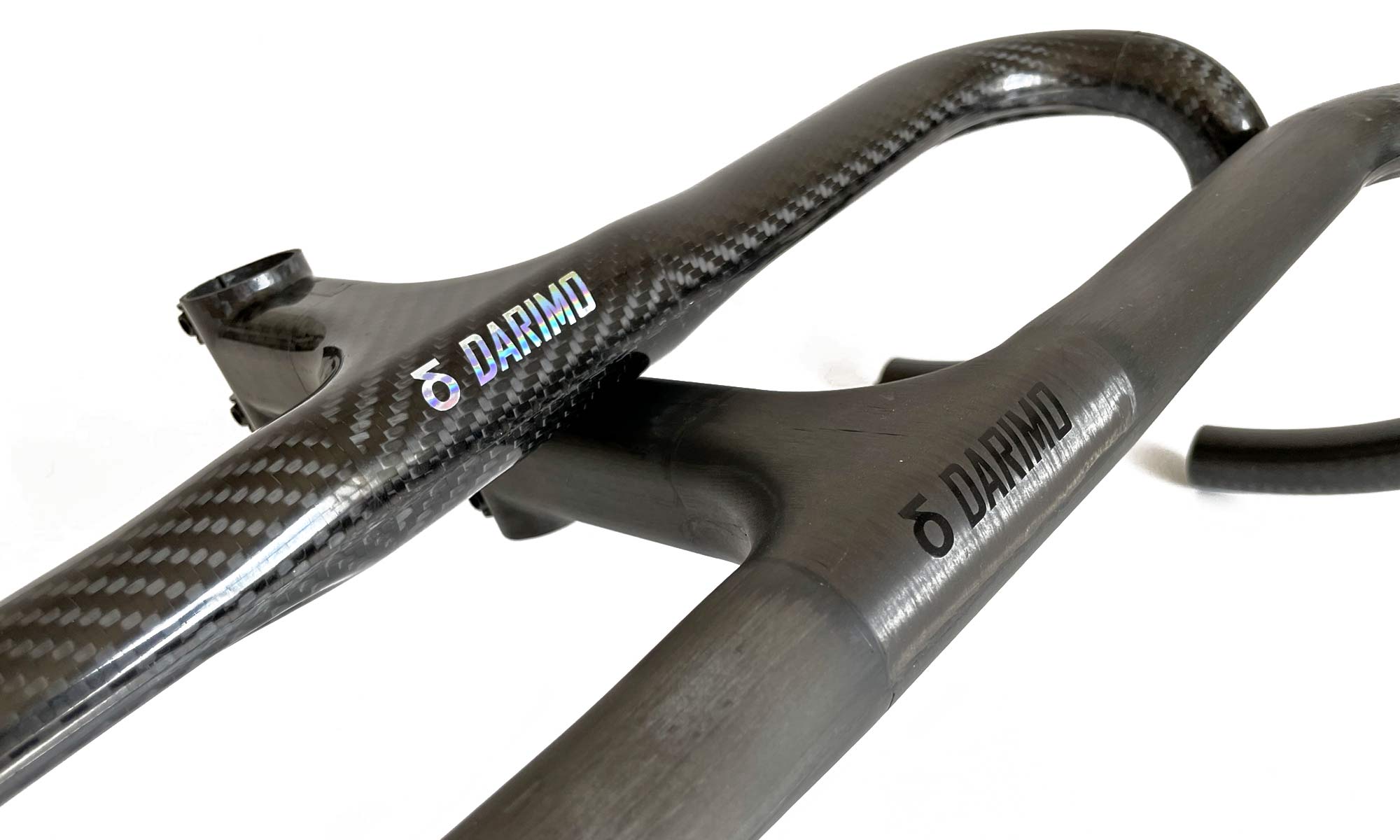

- Finish: Matte or Gloss, UD or 3K weave
- Torque: 4 Nm max (use carbon paste)
- Weight: 226 g (380×100mm) | 245 g (400×120mm)
- Certification: ISO 4210-2
🧩 Customisation Options
- Widths: 360–440 mm | Lengths: 70–130 mm
- Flare: 0°, 6°, or 16° (gravel)
- Finish: UD or 3K, Matte or Gloss
- Logos: Black (matte) or White (gloss) – custom colours optional
- Routing: External, semi, or full internal (Di2, ACR, D-shaped steerer compatible)
Each Nexum Drag is made-to-order to your exact specs. Simply send your required width, length, and routing style — we’ll liaise directly with Darimo to produce your custom cockpit.
💻 Integration & Mounting

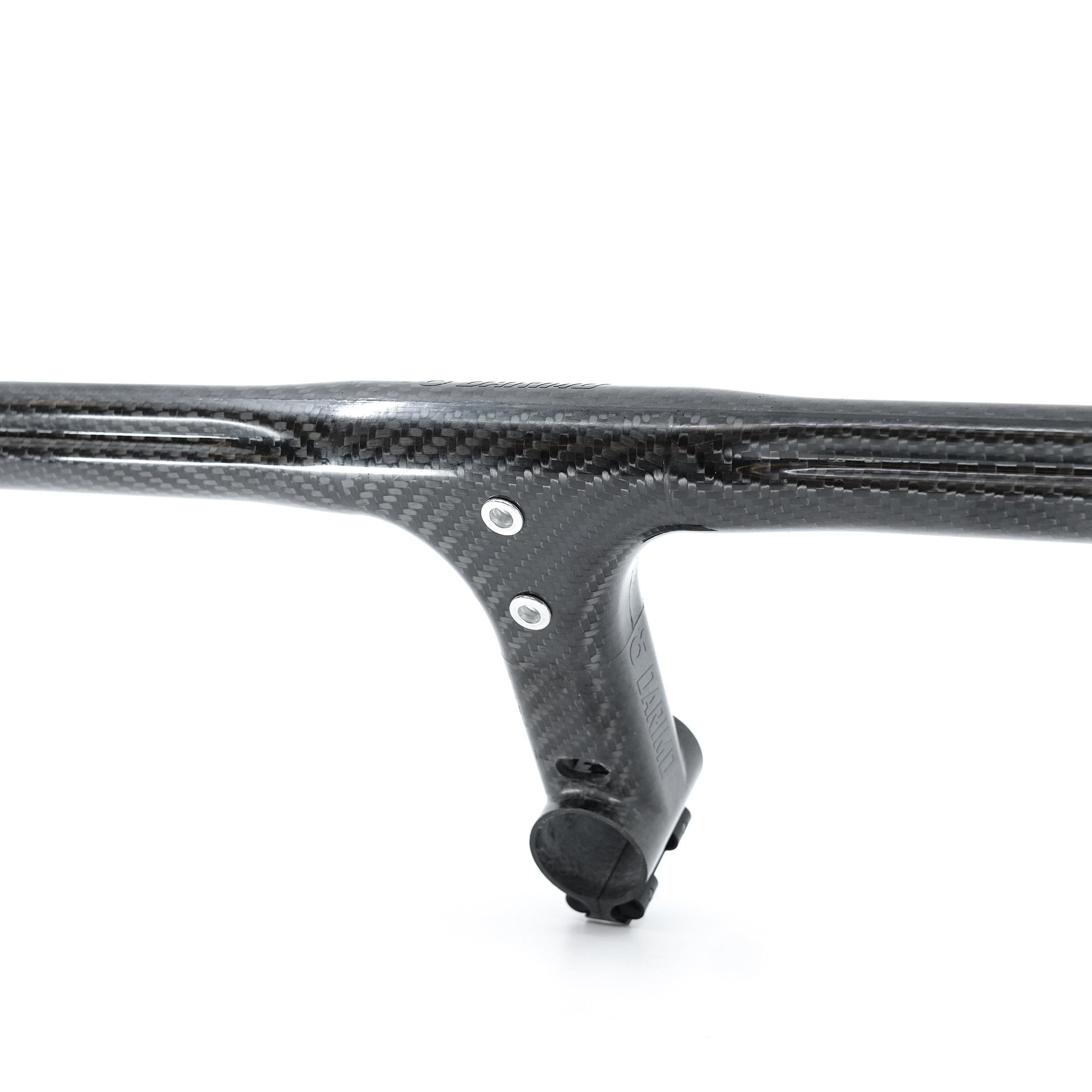

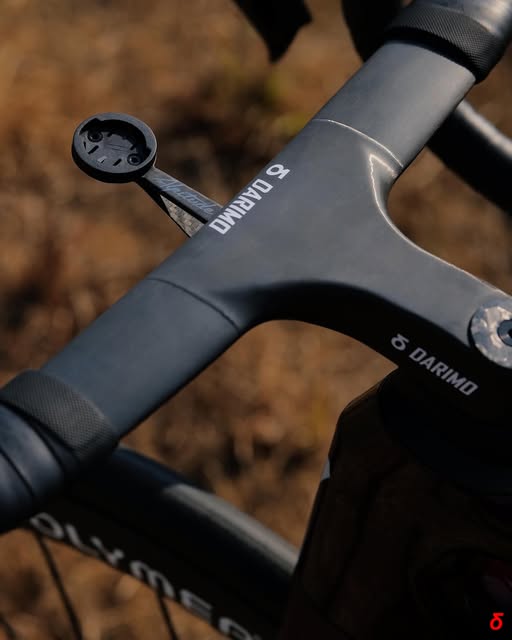

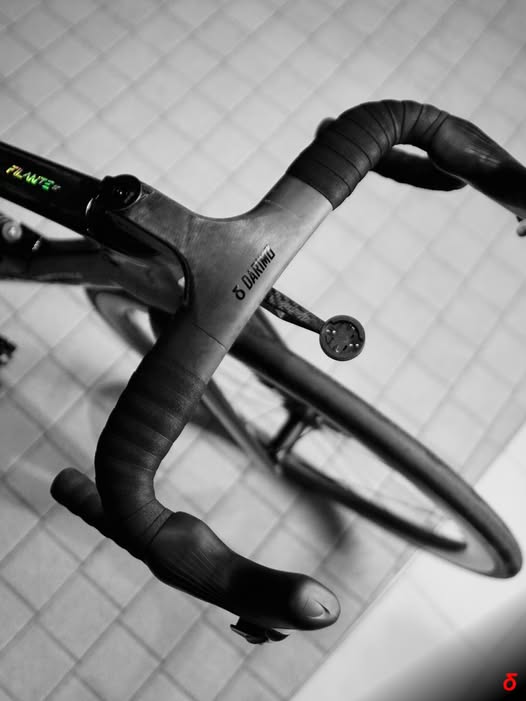

- ✅ Dual M5 threaded mounts under stem (29 mm spacing) for computer mounts like Alpitude Corretto
- 🔩 Custom base plates available via 3D printing for unique frame interfaces
💬 FAQs
Is the Nexum Drag compatible with my frame?
Yes — it’s designed for standard 1-1/8″ steerers and can be customised for ACR, D-shaped, or other integrated headset systems. Contact us if you’re unsure about your setup.
What’s the difference between the Nexum and Nexum Drag?
The Nexum Drag is the aerodynamic version, featuring a flatter top section, improved stiffness, and reduced drag — ideal for performance road and gravel builds.
Can I customise dimensions and finish?
Absolutely. Choose your preferred handlebar width, stem length, angle, carbon weave, flare, and finish. Even the logo colour can be customised.
Does it support Di2 or mechanical groupsets?
Yes — it supports both, with options for internal or semi-internal routing through the bar and stem.
How should I install it?
Use a high-quality carbon paste and a torque wrench. Maximum 4 Nm on steerer and lever clamps. If unsure, have it installed by a professional workshop.
What’s the warranty?
2-year manufacturer warranty from Darimo Carbon, covering defects in materials and workmanship. Every cockpit is handmade and inspected in Spain.
🔥 Why Riders Choose the Nexum Drag
Because it’s the lightest, cleanest, and most aerodynamic cockpit ever built — engineered for those who measure their rides in grams, seconds, and smiles per watt.
