World's best Rear MTB Thru Axles
“When the small details make the difference.”

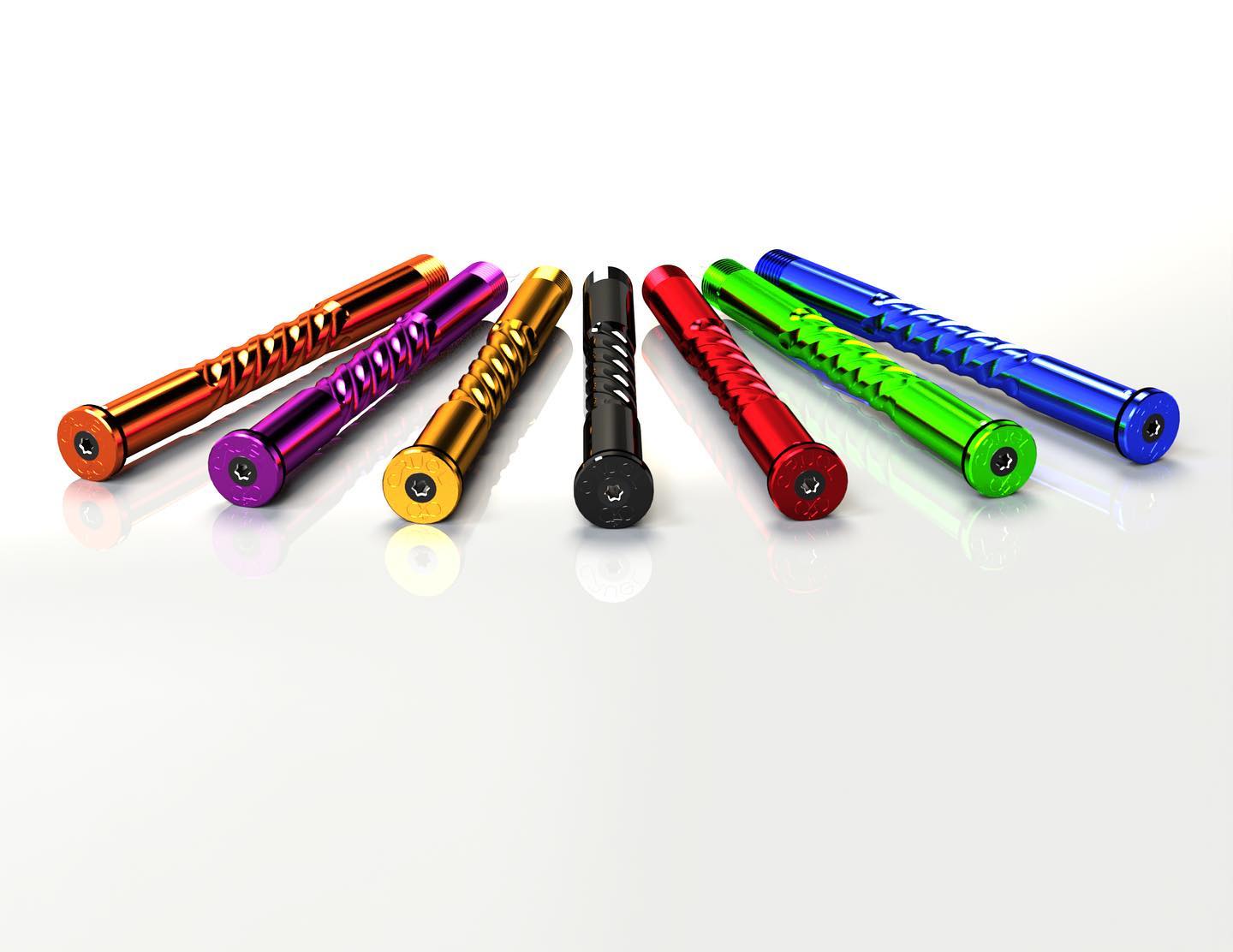

The jewel of the Cruel Components catalogue is the light weight thru axles. All thanks to the aerospace grade titanium Ti 6Al-4V (grade 5), and a very refined production technique, exquisite materials and artisan workmanship.
Their patented torquing system utilizing T25 Torx bolt providing the most secure fit for anyone who simply wants the best.
Their patented torquing system utilizing T25 Torx bolt providing the most secure fit for anyone who simply wants the best.
Meticulous Attention to Detail
The meticulous attention to detail is visible in our engraved logos and in the ingress protection cap. They produce unique components that combine light weight and performance, well above the standard.
Cruel components Thru Axles are popular all over the world for their patented torquing system, that guarantees a safe, precise and reliable mounting thanks to the torx t25 titanium bolt and eliminates the possibility of damage to the axle during frequent assembling/disassembling.
Thru Axles are available in several standards, constantly updated, and in different anodized colours, providing all customers the chance to improve the performance and the aesthetics of their bike.
Weight: 32/33grams (+5grams for RAT system)
| STANDARD | DIAMETER | LENGTH | THREAD PITCH |
|---|---|---|---|
| Scott | 12mm | 168mm | 1 |
| Scott Boost | 12mm | 171mm | 1 |
| E-Thru | 12mm | 170.5mm | 1.5 |
| E-Thru Boost | 12mm | 178mm | 1.5 |
| X-12 | 12mm | 163mm | 1 |
| X-12 Boost | 12mm | 171mm | 1 |
| Maxle 167.5 | 12mm | 167.5mm | 1.75 |
| Maxle 170.5 | 12mm | 170.5mm | 1.75 |
| Maxle 174 | 12mm | 174mm | 1.75 |
| Maxle 181.5 | 12mm | 181.5mm | 1.75 |
| Maxle 191.5 | 12mm | 191.5mm | 1.75 |
| Maxle 198 | 12mm | 198mm | 1.75 |
| Cannondale HT | 12mm | 171mm | 1 |
| Canondale Scalpel | 12mm | 176.5mm | 1 |
| Santa Cruz | 12mm | 168mm | 1 |
| Rat 168 - Type 1 | 12mm | 168mm | |
| Rat 168 - Type 2 | 12mm | 168mm | |
| Rat 171 | 12mm | 171mm | |
| Rat 176.5 | 12mm | 176.5mm | |
| Rear 178 | 12mm | 178mm | 1.25 |
