The further development of the ÜBERFLIEGER!
Higher, wider, and stronger!
The new Überflieger 46mm rim is here.
The internal rim width increases to 21mm and the rim height to 46mm. This significantly expands the range of applications. Stability, durability, and optimal tubeless performance were the focus of the development, resulting in the 2.0 variant.

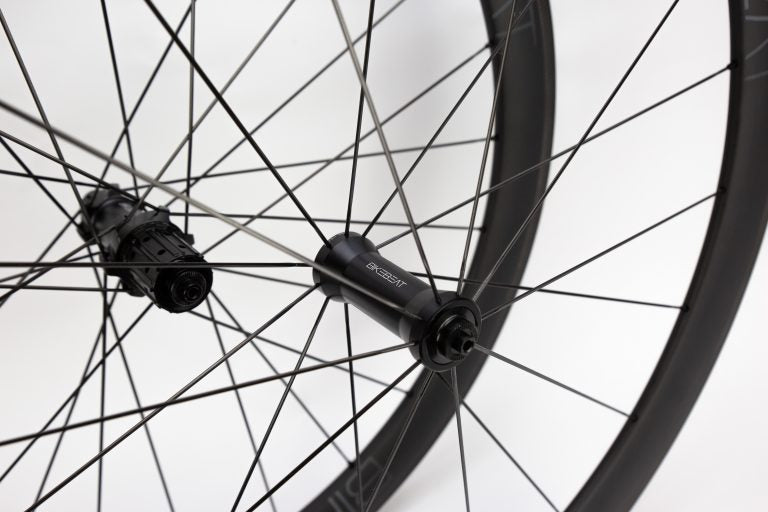

The newly developed BikeBeat hubs are very low maintenance; the bearings in the hubs are standardized and can be purchased through us or at any bike shop. Details below.
The wheelset supports athletes in various situations, all triathlon distances, breakaway groups, sprints, and mountain finishes. Aerodynamics, stiffness, and weight speak for themselves.
This model uses a very similar hub to the DT Swiss 240 as on the previous versions of the Uberflieger - same technology, same bearings and same sealing as well as the Ratchet technology. But Bike Beat have made them lighter overall than the DT Swiss 240 hubs.
---
Delivery time - Immediately available
Number of spokes - 20 (Front), 24 (Rear) in Sapim CX Ray
Braking system - Rim brake
Application - Road
Cassette body - Campagnolo 13-speed N3W, Campagnolo 9/10/11/12-speed, Shimano 11/12-speed, SRAM 11-speed, SRAM XDR 12-speed
Hub - BikeBeat SuperLight Straightpull
Wheel size - 28"
Tyres - Wire / folding
Tyre Type: Clincher/ Tubeless
Axle system - 5mm quick release
Dimension (ETRTO) - 17-622
Recommended tyre width - 23mm-43mm
Rim width outside - 28mm
Rim width inside - 21mm
Rim height - 46mm
Weight limit - 120kg Total weight
Air pressure (max.) - 9 bar (bei 23 mm Reifen)
Rim material - Carbon
Weight - 1390g
Tubeless-system - Tubeless ready
TG: 250 °C – This value reflects the heat resistance of the rim. More specifically, it means that the brake flank can endure up to 250° Celsius before the material gets tired.
Bearings in the hubs are standardized and can be purchased through us or at any bike shop:
Front wheel: 2x 6802
Rear wheel: 1x 6802 1x 15267
Freewheel: 2x 6802.
Specifications
| Application | Road |
| Weight | 1390g (set) |
| Wheel Size | 28" |
| Rim Material | Carbon |
| Rim Height | 46mm |
| Rim Width Internal | 21mm |
| Rim Width External | 28.2mm |
| Hubs | BikeBeat SuperLight Straightpull |
| Rec. Tyre Width | Min 23mm, Max 43mm |
| Tyre Type | Clincher, Tubeless |
| Tubeless System | Tubeless Ready |
| Number of Spokes | 20 (F), 24 (R) Sapim CX Ray |
| Braking System | Rim Brake |
| Brake Pads | Inc. 4x Carbon brake pad |
| Cassette Body |
Campagnolo 13-speed N3W, Campagnolo 9/10/11/12-speed, Shimano 11/12-speed, SRAM 11-speed, SRAM XDR 12-speed |
| Weight Limit | 120kg |
| Warranty | 4yrs |
| TG | 250° |
This value reflects the heat resistance of the rim. More specifically, it means that the brake flank can endure up to 250 ° Celsius before the material gets tired
