Description:

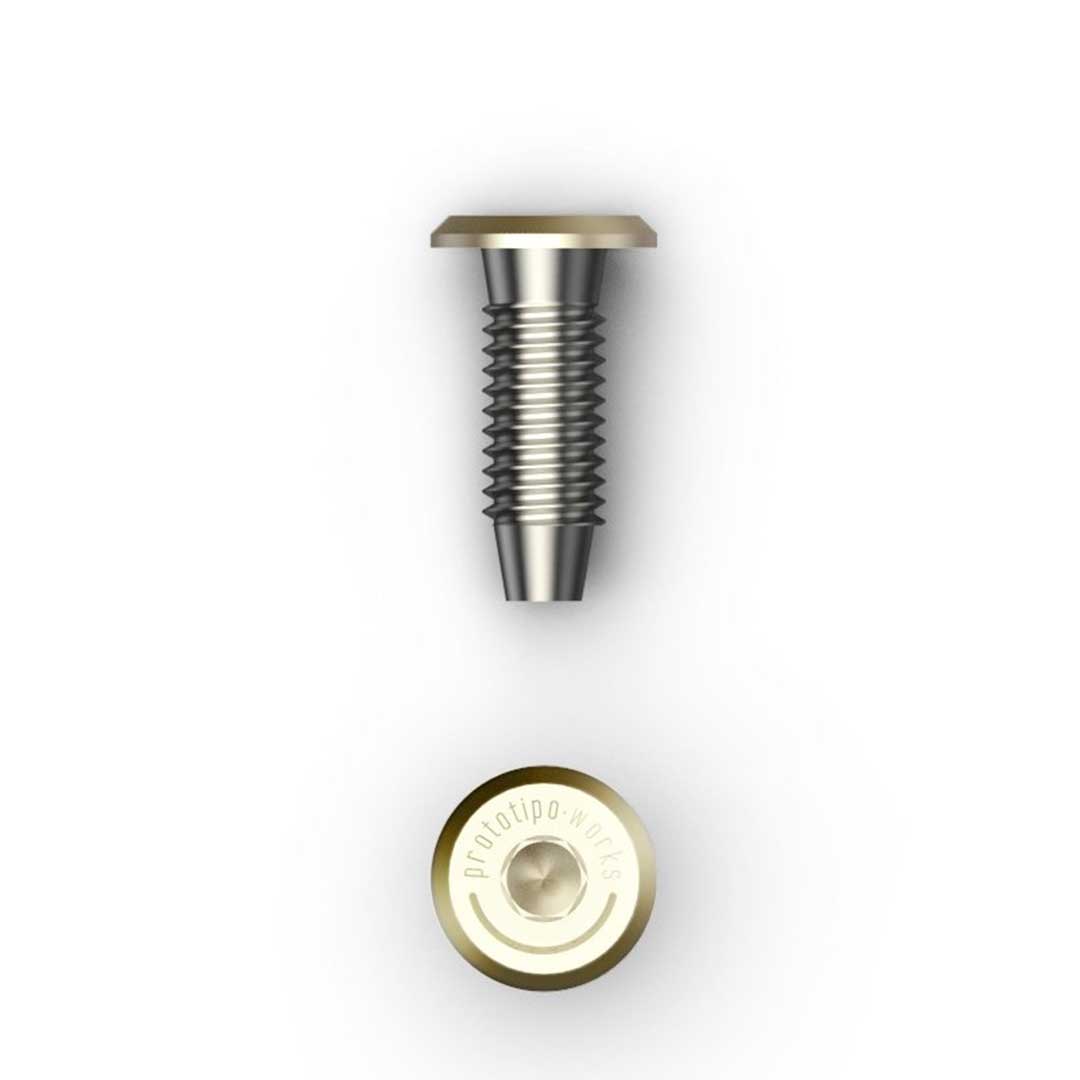

Prototipo Works M5 316 Stainless Steel Original Bidon Cage Bolt.
3mm M5 Metric thread. Excellent finishing touch to all builds. Can be used with or without* a bidon cage. Low profile head design provides a clean finishing touch.
Designed, engineered and proudly made in Melbourne, Australia.
*The head may sit up a little on bespoke low volume frames using bidon/accessory mounts where the mount thread travels all the way up to the top, visible from above.
Specifications:
| Features | Low head height |
| Taper Tech thread base for easy installation | |
| Precision CNC machined from 316 stainless Steel | |
| Precision laser etched Prototipo Works logo | |
| Sold as pair | |
| High lustre polished head | |
| PVD Titanium coated Champagne head | |
| Finish |
Natural CNC machined finish / Polished Head |
| PVD Titanium coated Champagne head. | |
| Thread retains its natural CNC machined finish and tight tolerances. |
Installation:
-
Prototipo Works strongly recommends the use of a lithium based anti seize assembly lubricant during the installation of our hardware. An anti seize assembly lubricant helps prevent seizing, galling, cold-welding, and the fusing of metal on metal threaded components. Ideal for salty environments, humid environments, in the presence of water, moisture, sweat and ingress.
-
Please ensure all mating threads and installation tools are the correct size, are clean, free of damaging burrs and inserted straight.
-
Maximum Torque 3-5Nm. DO NOT OVERTIGHTEN.
-
If unsure if it will fit correctly on your bicycle, please contact us
Disclaimer
- Warning! Choking Hazard, Small Parts.
- These special lightweight bolts are for light load duties only!
- Product appearance may vary slightly.
- Use at your own risk!
Special Notes
- Will fit a majority of mass produced major OEM produced bicycles.
- May not fit correctly on bespoke low volume produced bicycles. This is due to the bidon mounts that are sometimes used - whereby the thread travels all the way to the top, visible from the outside.
- In this scenario the bolt head may sit up a little, may not screw in all the way down and may bottom out early on low volume / bespoke bidon bosses. In which case there may be visibly exposed thread under the head requiring a slim washer to provide adequate clamping forces to installed accessories or a slim washer when installed without accessories.
- To avoid this please see our Low and Ultra Low Bolts or contact us for support
- Bidon (French) the traditional name for cycling water bottles.
