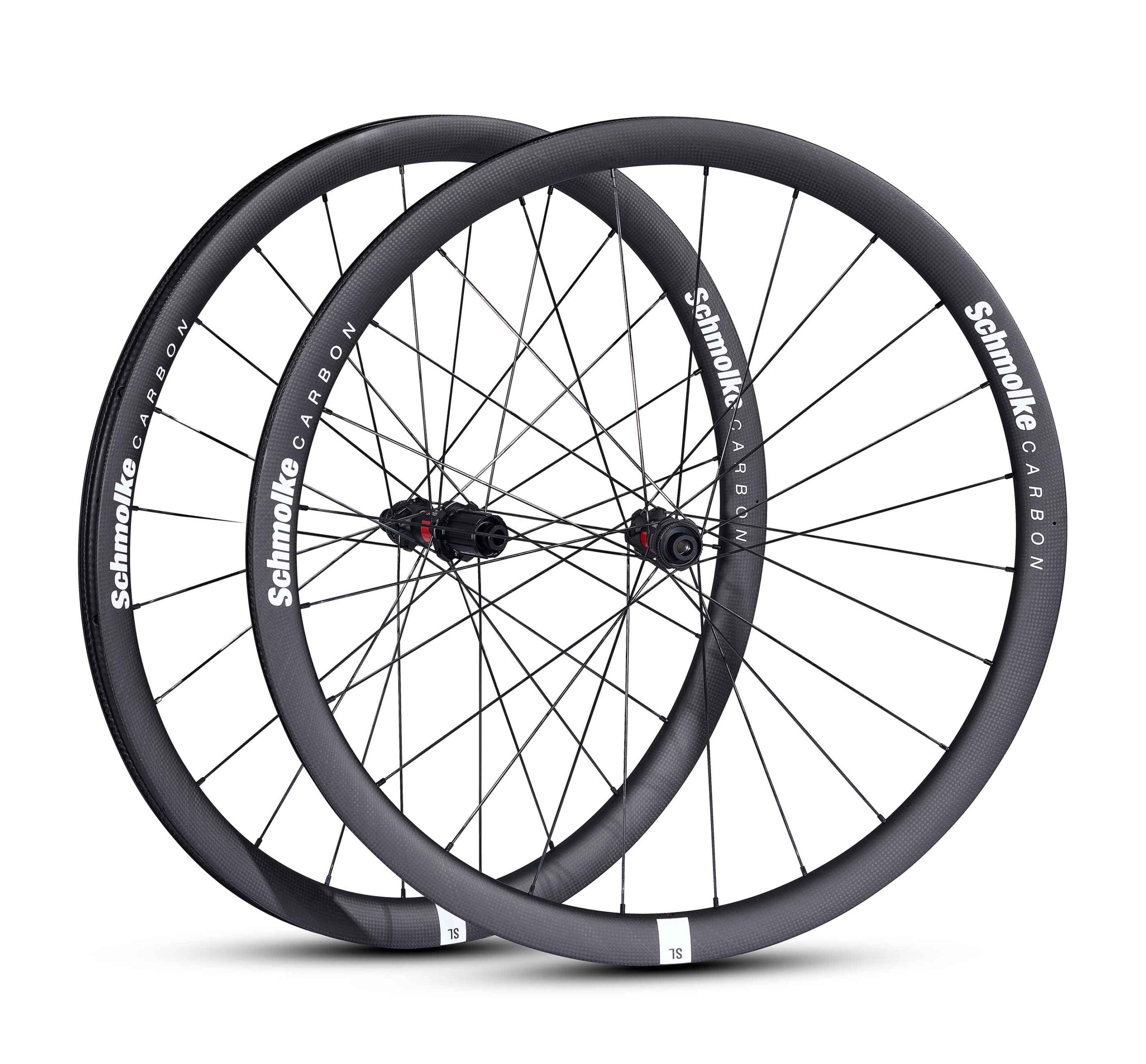

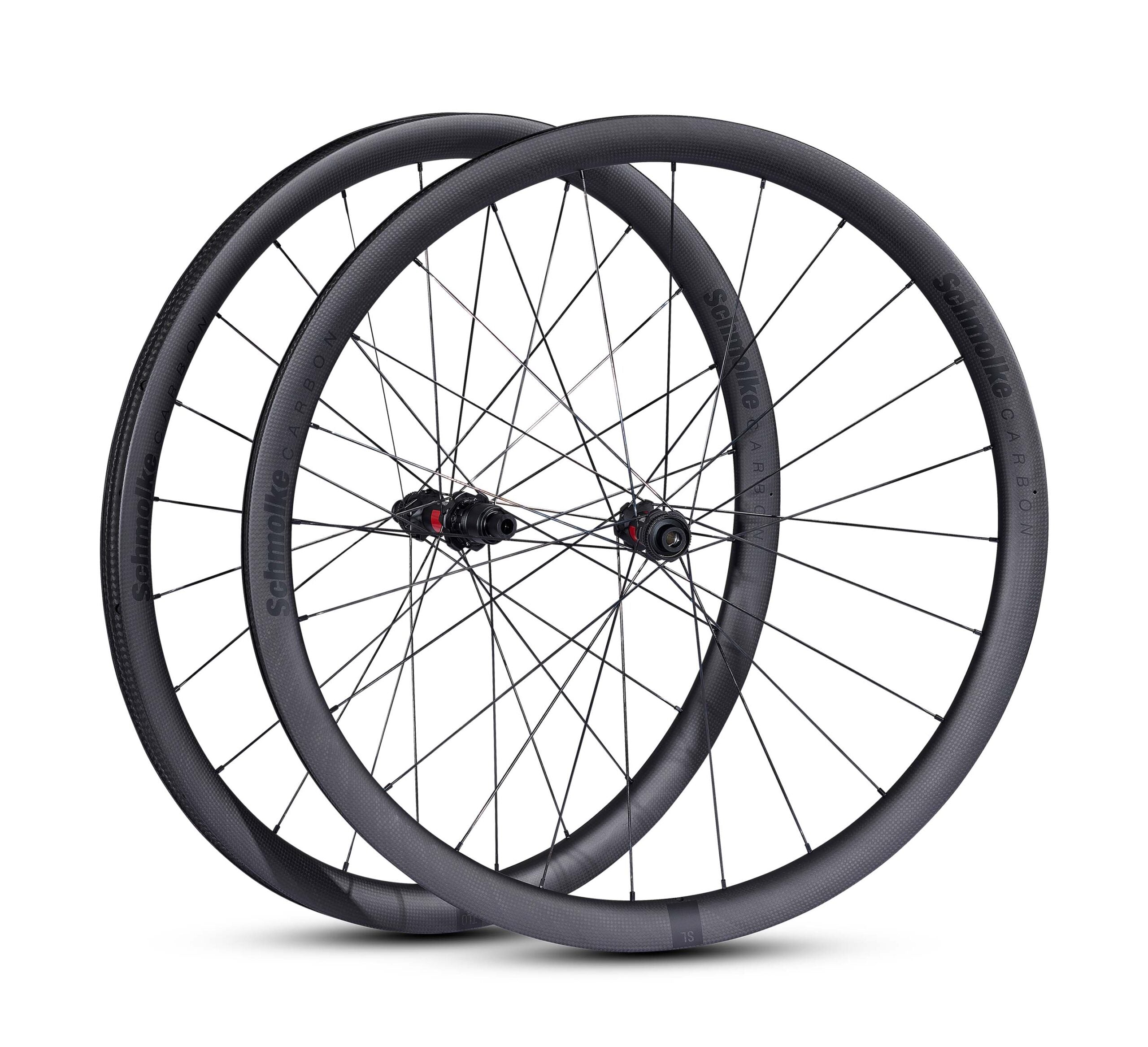

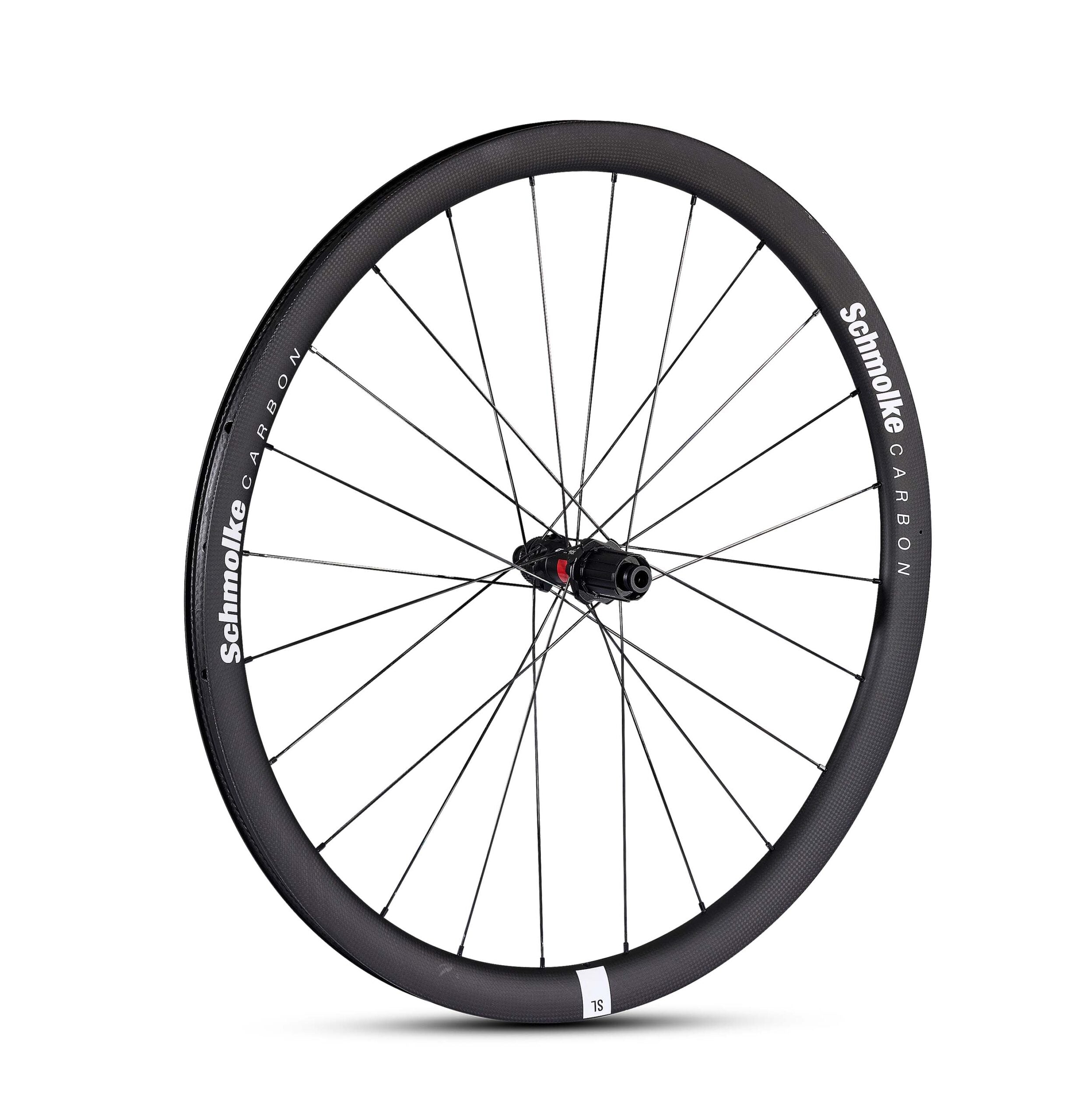

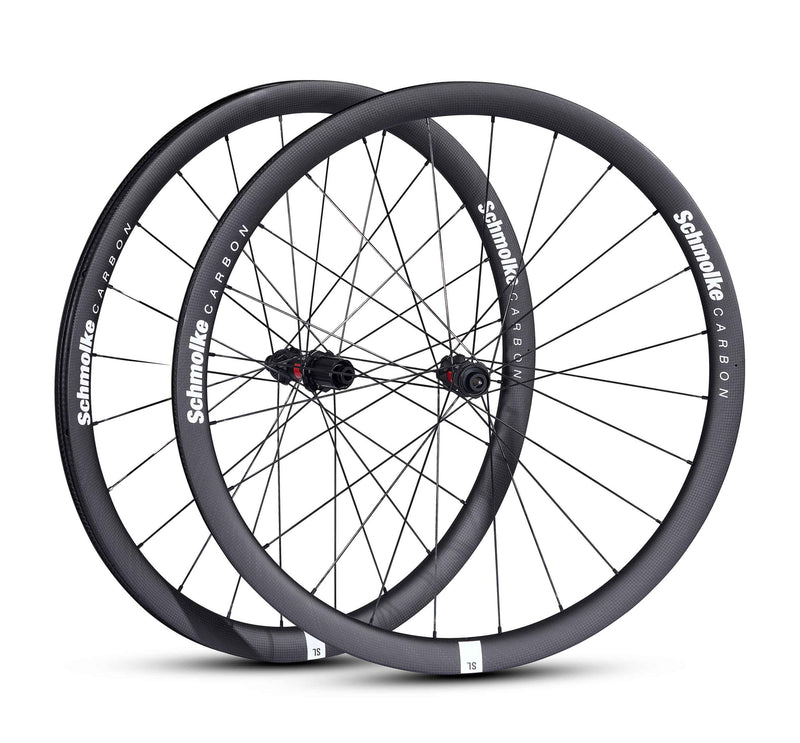

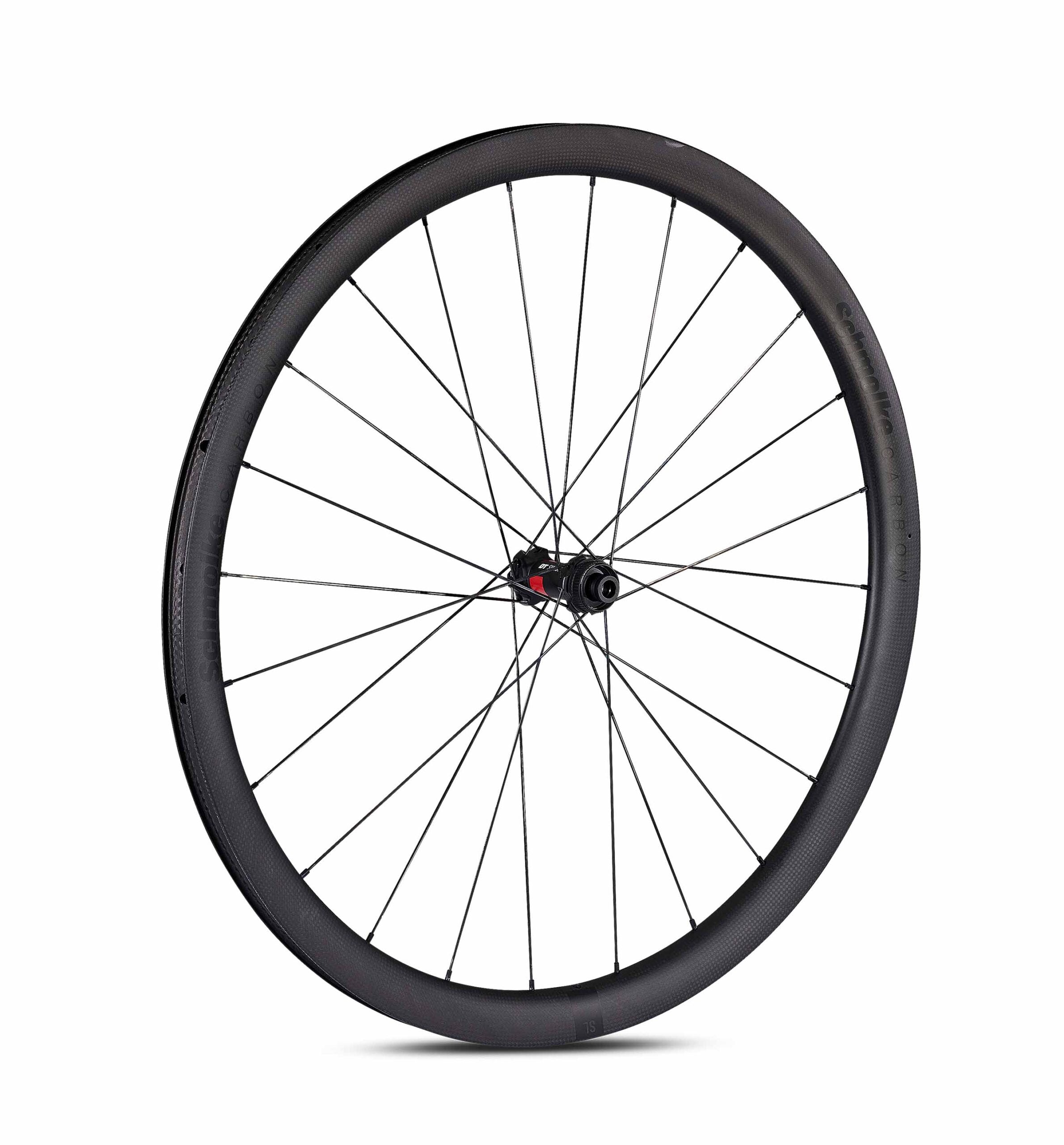

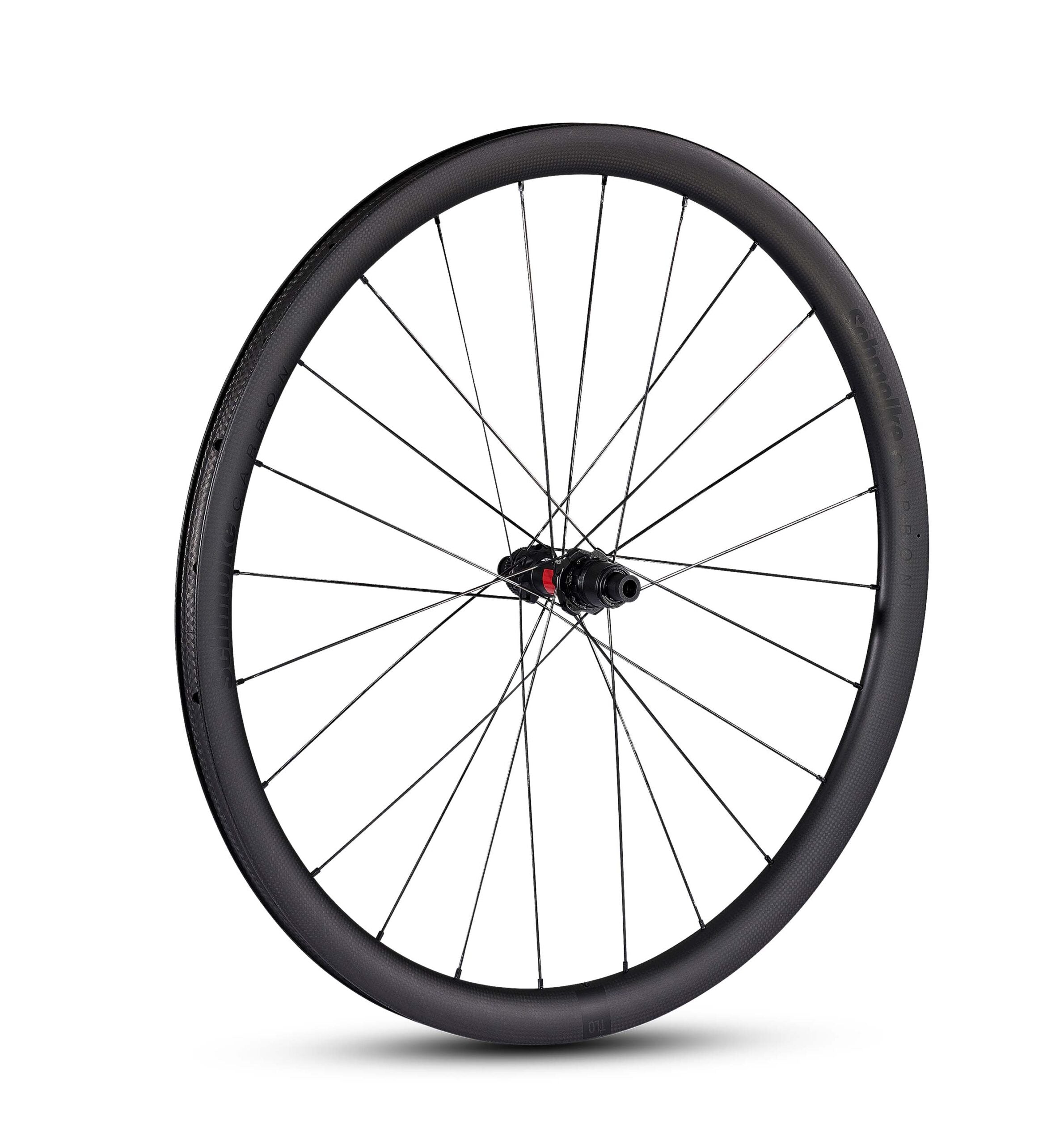

The new SL 37: agile, stiff and affordable
U-Shape
For the best performance at high speeds – The aerodynamic U-shape has been successively optimised to achieve the best aerodynamic properties. In order not to deform the shape under spoke tension, more material with different fibre orientations has to be accumulated – nevertheless, a sensational low weight could be achieved while maintaining stability. Aerodynamics were even more important to us for this product than minimising weight.
Inner width
22.3 mm – The best aerodynamic properties are achieved with a tire width of 28 mm.
Hubs of our trust

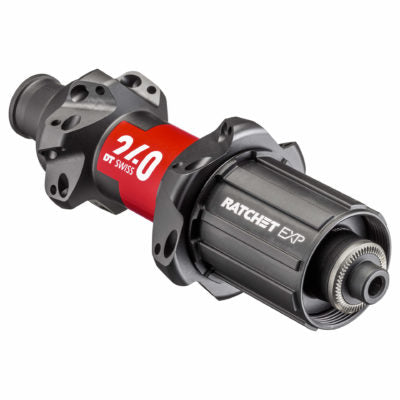

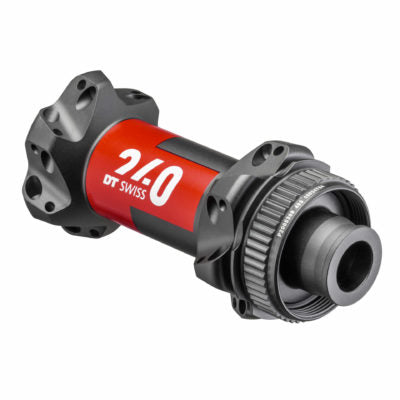

DT Swiss – we have been relying on the quality and longevity of the DT Swiss 240 hub for our SL series for several years now. Coupled with the low weight, the DT Swiss 240 hub is the perfect match for all important parameters for Schmolke standards. The extremely reliable freewheel system ensures direct power transmission even under the highest loads. Smooth-running bearings provide a clear advantage with their extremely low rolling resistance.
SAPIM spokes
We use steel spokes from the Belgian manufacturer SAPIM on all of our wheels. With the CX-Ray knife spoke we installed, Sapim has succeeded in developing an exceptional spoke. In addition to its low weight, it has exceptional load capacity and flexibility. This also results in the large area of application. Regardless of whether it is a racing bike, gravel or MTB wheelset, they all benefit from these positive properties. In addition, the flattened middle section ensures excellent aerodynamics. The high quality of the materials enables the construction of stable wheels and guarantees a long service life.
Which freewheel system do I need?
Before you make the purchase, you should be clear about which gears you have installed on your bike. This determines which freehub body you should order.
Shimano – If you have installed a Shimano group set, please select Shimano (HG-11) as the freehub body. Even with the new 12-speed gears, the cassette can still be installed on the conventional HG-11 freehub body without any problems.
SRAM – If your bike has a SRAM group with an 11-speed cassette, you should choose the Shimano HG-11 freewheel body to be able to install your cassette. The newer 12-speed AXS gears from SRAM require the XDR freehub body for assembly, in which the cassette is screwed onto the body in one piece.
Campagnolo – If you have installed a Campagnolo 12-speed gears, we ask you to select the “Campagnolo” freehub body when ordering.
Agile and affordable
With their agile character, the wheels are born for the mountains and for the undulating marathon terrain. Thanks to their high lateral stiffness, every watt reaches the road directly. The SL 37 wheels can be steered very precisely and give a calm feeling on fast downhill rides. At high speeds, the low susceptibility to wind also conveys a high feeling of safety. And all at an unbeatable price!
Assembly Instructions
Get Assembly Instructions for the SL 37 TLR Disc Wheelset just here.
SL 37 TLR Disc - The Specs
Hooked Rim: 37 mm Tubeless Ready asymmetrical / 24 holes
Recommended tire pressure (mm/bar): 25/8,5 – 28/7,5 – 30/7 – 32/6,5
Width: 28 mm / Internal Width: 22.3 mm
Hub Options:
DT Swiss 240 Centerlock / the wheelset is also available with DT Swiss 180 hubs (on request)
Compatibility: front 100mm / rear 142mm, through axle 12mm
Spokes:
DT Swiss - SAPIM XC Ray 2.0
Total weight:
DT Swiss - 1190g
Rim weight only:
DT Swiss - approx. 330 g (per rim)
Finish: 1K fabric with black or white logos
Max. system weight:
DT Swiss - 110kg
Production: The rims are made in Germany
Colour options: White/White, Black/Black
Made in Germany
Delivery lead time: Place your wheelset order today and we will assemble and ship it within 2 days ex works Germany. Delivery to Australia 7 days from order.
